5 Axis CNC Service

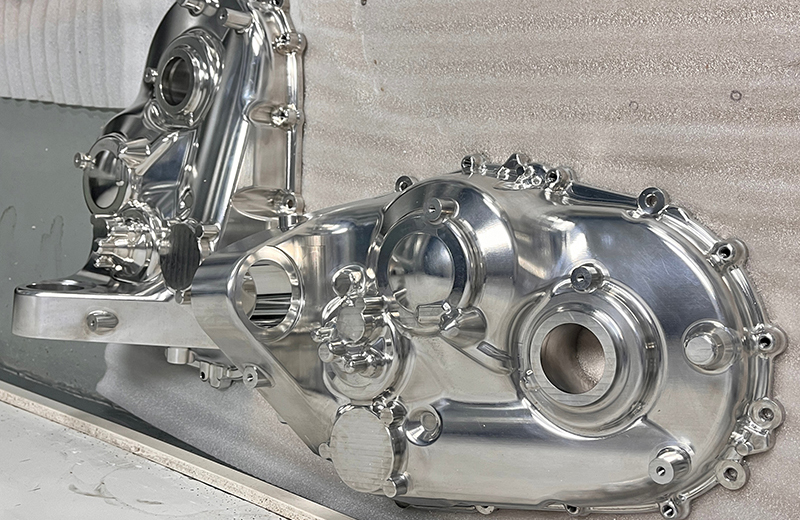

img src="/Uploads/image/20240823/20240823135844_51696.jpg" alt="5 axis machined part" width="600" height="390" title="" align="" />
Advanced CNC machining services, particularly 5-axis technology, revolutionize manufacturing by enabling the creation of intricate components with exceptional precision and efficiency. From trunnion-style machines offering better undercuts and larger work areas to 3+2 axis setups simplifying complex angles, these techniques are indispensable for industries like aerospace, medical, and energy, delivering tight tolerances and cost-effective solutions for even the most demanding applications.
Advanced CNC Machining Services - Trunnion-Style Machining Advantages
Imagine a workbench that can tilt and rotate like a carnival ride, giving you access to every nook and cranny of your project. That's essentially what a trunnion-style 5-axis CNC machine does, offering some unique advantages:
▶ Trunnion-Style Machining ▶
- • Better undercuts: The table can tilt further than other designs, allowing tools to reach tricky spots underneath parts, like carving the underside of a sculpture.
- • Larger work area: With a stationary cutting head, there's more room to maneuver big pieces, similar to having a spacious kitchen counter for cooking.
- • Powerful cutting: The fixed spindle can use belt-driven tools, providing more oomph for heavy-duty work, like using a powerful blender instead of a hand mixer.
- • Easier to understand: For machinists used to 3-axis machines, this setup feels more familiar, making the transition to 5-axis work smoother.
3+2 Axis Machining Explained
3+2 axis machining is like having a super-flexible workbench that can tilt and rotate your project before you start carving. Imagine you're sculpting a complex statue:
- • Instead of constantly moving around the statue, you can tilt and rotate it to the perfect angle, then use your regular tools to carve.
- • This technique uses a 5-axis machine, but locks two axes in place while working, hence the name "3+2".
- • It's easier to program than full 5-axis machining, like following a simple recipe instead of a complex one.
- • You can use shorter, sturdier tools, which means faster work and better precision - like using a short, sharp knife instead of a long, wobbly one.
This approach is great for parts with tricky angles or deep pockets, allowing machinists to create complex shapes more efficiently than with traditional 3-axis machines.
Medical Implants with Tight Tolerances
In the world of medical implants, precision is paramount - imagine trying to build a miniature Lego city inside your body where every piece must fit perfectly. That's the level of accuracy needed for orthopedic implants and medical devices. CNC machining, especially 5-axis technology, has become the go-to method for creating these intricate parts with incredibly tight tolerances.
-
•
Standard machining can achieve tolerances of ±0.002" (about half the thickness of a human hair)
-
•
Advanced micro-machining pushes this to ±0.0004" (thinner than a red blood cell)
-
•
Cutting-edge femtosecond laser machining can reach an astounding ±0.00004" (smaller than most bacteria)
-
•
These tight tolerances ensure implants fit correctly, reducing risks and improving patient outcomes
Precision 5 Axis Milling Services
5-axis CNC milling machining is like having a super-skilled robot chef with five arms, each moving independently to craft intricate culinary masterpieces. This advanced machining technique allows for the creation of complex parts with incredible precision, much like sculpting a delicate ice sculpture from every angle simultaneously. Here's what makes it special:
-
•
Efficiency: It can create complex shapes in a single setup, like making an entire meal in one pot
-
•
Precision: Achieves tight tolerances down to ±0.005 mm, finer than a human hair
-
•
Versatility: Perfect for industries like aerospace, medical, and energy, crafting everything from turbine blades to dental implants
-
•
Cost-effective: Despite higher hourly rates, it often reduces overall production time and setups, potentially lowering total costs
5-axis machining is essential for achieving intricate geometries and tight tolerances in a single setup, reducing the need for multiple setups and enhancing overall productivity. Our advanced machining capabilities allow us to handle a diverse range of materials, including metals, plastics, and composites, making us the ideal partner for industries such as aerospace, automotive, medical devices, and more.
Whether you need custom prototypes or large-scale production runs, Chiheng Hardware is committed to delivering high-precision parts tailored to your exact specifications. Our team of skilled engineers and technicians ensures every component meets rigorous quality standards, ensuring reliability and performance in every application.
