Grooving Metal Processes

Grooving machining is a precision manufacturing process that involves cutting specific channels or recesses into workpieces, typically using CNC lathes or milling machines. This versatile technique is essential for creating components with intricate grooves, such as sealing rings, gears, and parts requiring precise fitting or assembly.

Internal vs External Grooving

Internal and external grooving techniques are essential machining processes with distinct characteristics and applications. Here's a comparison of key aspects:

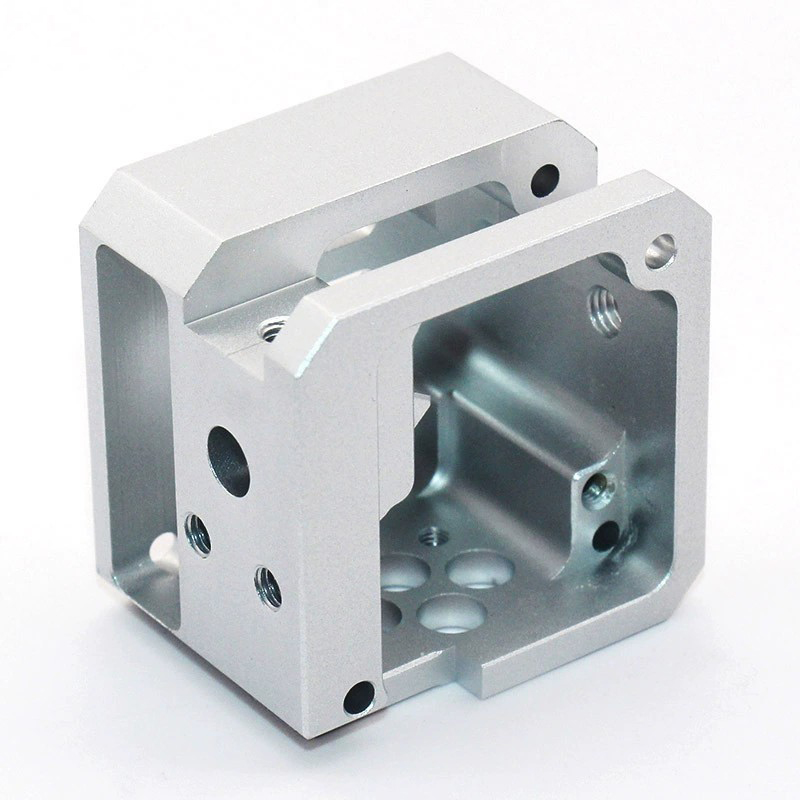

Internal Grooving Parts

Aspect	Internal Grooving	External Grooving
Workpiece Surface	Inside hollow components	Outer surface of cylindrical parts
Tool Design	Longer, more slender tools	Shorter, more robust tools
Chip Evacuation	More challenging, requires high-flow coolant	Easier, but still important for precision
Visibility	Limited, relies more on CNC programming	Better visibility for operator monitoring
Common Applications	Seals, threads in hollow parts	O-ring grooves, retaining rings, decorative patterns
Cutting Forces	Generally lower due to smaller tool size	Can be higher, allowing for faster material removal
Precision Challenges	Tool deflection, vibration in deep grooves	Tool pressure, maintaining dimensional accuracy

Internal grooving often requires more specialized techniques, such as starting from the bottom of the hole and working outward for optimal chip removal. External grooving, while generally more straightforward, demands careful consideration of cutting speeds and tool selection to achieve desired surface finishes and dimensional accuracy.

CNC Techniques for Face Grooving

Face grooving on CNC machines involves creating circular grooves on the face of a workpiece, often for seals or mating surfaces in assemblies. Traditional methods include using end mills for circle interpolation, but this can lead to tool breakage and long cycle times.

A newer technique employs trepanning-type tools like the Mill A Groove system, which installs in a boring head and uses lathe face-grooving inserts for single-point cutting. This approach offers several advantages:

Face Grooving

•
Improved groove concentricity and surface finish compared to end milling
•
Faster production times (up to 90% faster in some cases)
•
Ability to create both symmetrical and asymmetrical groove profiles
•
Option to perform face milling as a single-point, fly-cutting operation for more uniform surface finishes

When face grooving, it's crucial to select the appropriate tool diameter range to avoid interference with the workpiece. Starting the cut at the largest diameter and working inward typically provides better chip control and process security

Precision in Multi-Step Grooving

Multi-step grooving is a precision technique used for creating deep or wide grooves in materials like steel or aluminum. This method involves making multiple passes with the cutting tool, gradually increasing the depth or width of the groove. Key advantages of multi-step grooving include:

•
Better control over chip evacuation, reducing the risk of tool breakage
•
Improved surface finish due to reduced cutting forces
•
Ability to create complex groove geometries with high accuracy
•
Enhanced tool life by distributing wear across multiple cutting edges

When performing multi-step grooving, it's crucial to calculate the minimum number of cuts required based on the groove width and insert width. Proper planning ensures equal machining allowance on both sides, leading to better cutting conditions and surface quality. For high-precision results, roughing the middle and finishing each side separately allows for precise control over groove position and width.

Applications of Contour Grooving

Contour grooving is a specialized technique used to create complex, non-linear grooves on curved surfaces, making it invaluable for various industrial applications. This method is particularly useful when standard linear grooving techniques are insufficient for achieving desired geometries.

O-ring Grooves

Application	Description
Seals and Gaskets	Creates precise contours for effective sealing in complex shapes
O-ring Grooves	Enables circular interpolation for accurate O-ring seating
Decorative Designs	Produces intricate patterns on curved surfaces for aesthetic purposes
Aerospace Components	Allows for complex groove patterns in critical parts
Hydraulic and Pneumatic Systems	Facilitates creation of flow channels in curved components
Custom Fittings	Enables manufacturing of specialized parts with unique groove requirements

Contour grooving's versatility makes it essential in industries requiring high-precision components with complex geometries, such as aerospace, automotive, and medical device manufacturing. The ability to create varied groove patterns on curved surfaces opens up new possibilities for component design and functionality.

CNC Grooving Techniques

CNC machining has revolutionized grooving processes, offering precision and efficiency in both turning and milling applications. In CNC turning, internal grooving is achieved using specialized tools and techniques to overcome challenges such as excessive guide rod extension and poor chip removal.

High-flow precision coolant improves chip control and evacuation, while shorter tool extensions enhance stability. For CNC milling, the G75 groove cycle automates the process, allowing for efficient production of grooves wider than the tool width.

•
CNC turning applications include radial feed roughing, side roughing, and non-linear tool path roughing for internal grooves
•
CNC milling processes utilize cycles like G75, which can be programmed in single-line or two-line formats for versatile grooving operations
•
Both CNC turning and milling enable precise control over groove depth, width, and geometry, enhancing productivity and part quality
•
Advanced CNC programming allows for contour grooving, creating complex non-linear grooves on curved surfaces

Custom Metal Groove Solutions

Custom grooving metal solutions offer tailored approaches to achieve precise and complex grooves in metal workpieces. These solutions often involve specialized tooling and techniques to meet specific application requirements.

For instance, custom-made inserts can be designed for unique groove profiles, while adjusting existing tools' dimensions internally allows for greater flexibility.

Case Study Ⅰ: Cross-sectional Grooving in Precision Manufacturing

A leading automotive parts manufacturer faced challenges in producing high-precision transmission housing components requiring complex internal grooves. The implementation of advanced cross-sectional grooving techniques provided an innovative solution.

Cross-sectional Grooving

•
Key Implementation Details:

- Specialized cross-sectional grooving tools achieved groove depths ranging from 0.5mm to 15mm with positioning accuracy of ±0.01mm
- Custom-designed insert geometry enabled single-pass grooving operations, reducing cycle time by 40%
- Integration of high-pressure coolant delivery systems improved chip evacuation and extended tool life by 60%
•
Technical Specifications:

- Groove width tolerance: ±0.02mm
- Surface finish: Ra 0.8μm or better
- Perpendicularity: 0.01mm per 10mm depth
- Material removal rate: up to 150 cm³/min
•
Results and Benefits:

- Production efficiency increased by 35% compared to traditional methods
- Scrap rate reduced from 3% to 0.5%
- Tool life extended to 500 pieces per edge
- Improved part quality and consistency in critical mating surfaces
•
Cross-sectional Grooving Capabilities:

- Advanced insert geometry allows for precise material removal in confined spaces
- Multi-point cutting technology enables simultaneous machining of multiple groove profiles
- Specialized coating technology extends tool life in challenging materials
- Real-time monitoring ensures consistent groove quality throughout production runs

Case Study Ⅱ: V-grooving in Aerospace Machining

In critical applications, such as aerospace components, custom tools may be employed to produce multiple grooves simultaneously, improving efficiency and repeatability.

•
V-grooving technology creates controlled notches in metal sheets, enabling sharper bends and complex angles with reduced material distortion
•
Custom groove widths ranging from 0.004 to 0.150 inches can be achieved using specialized inserts
•
Trepanning-type tools, like the Mill A Groove system, allow for single-point cutting of face grooves on machining centers, offering improved concentricity and faster production times
•
Advanced CNC programming and specialized tooling enable the creation of contoured grooves following complex, non-linear paths
